Braided Packings

Applications

Braids and packing are used in industry, for the isolation of trees and stems. They go to work either as a static seal lids, frames, furnaces and boilers is kept in motion as centrifugal pumps and valves but also rotating shafts.

Description

They are made with different components according to their diverse range of use as regards temperatures, pressures and speeds: Graphite fibers, vegetable fibers, synthetic fibers, metals, lubricants and various binders Knowing how to choose the right type of braid means knowing how to evaluate some key features that distinguish the packing between them: Flexibility- stretching, twisting
Elasticità- to exercise the right seal in the presence of pressure
Compattezza- to avoid over-tightening

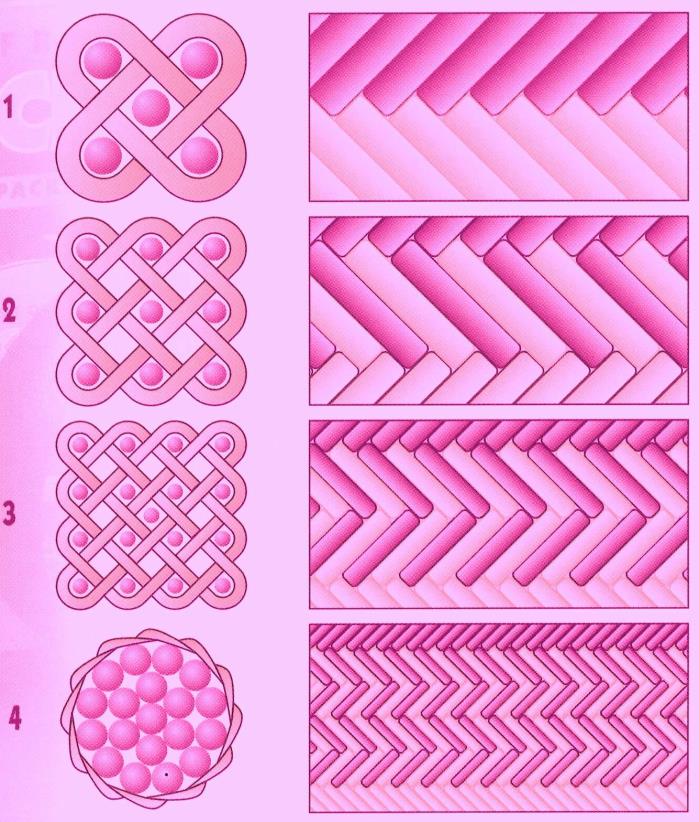

Always according to the uses, are available with different types of braiding how image below:

1- two diagonals
2-three-diagonal
3-four diagonals
4- Round

Prodotto Trecce e Baderne 22 - Gasket Italy

Description

Kevlar®

For pumps

Bar 50 / 100 / –

T°C – 200 + 280°c

Ph. 3 / 12

v.m/sec. 15 / 3 / –

Prodotto Trecce e Baderne-8- Gasket Italy

Description

Kevlar® + P.T.F.E on corners

For valves

Bar 20 / 80 / 200

T°C – 100 + 260°c

Ph. 3 / 12

v.m/sec. 15 / 1 / 1.5

Prodotto Trecce e Baderne -14 - Gasket Italy

Description

Discontinuos Aramidic + Lubrificated P.T.F.E.

For valves

Bar 30 / 80 / 100

T°C – 100 + 250°c

Ph. 3 / 12

v.m/sec. 20 / 2 / 1

Prodotto Trecce e Baderne 2 - Gasket Italy

Description

Discontinuos Aramidic Graphite + Lubrificated P.T.F.E.

For pumps

Bar 50 / 100 / 100

T°C – 100 + 400°c

Ph. 2 / 12

v.m/sec. 15 / 2 / 1

Prodotto Trecce e Baderne 37 - Gasket Italy

Description

Discontinuos Lubrificated Graphite Aramidic + Inconel®.

For pumps

Bar 50 / 100 / 100

T°C – 100 + 400°c

Ph. 2 / 12

v.m/sec. 15 / 2 / 1

Prodotto Trecce e Baderne 27 - Gasket Italy

Description

Ecopaper®

For pumps

Bar 50 / – / –

T°C 120°c

Ph. 1 / 14

v.m/sec. 15

Prodotto Trecce e Baderne 18 - Gasket Italy

Description

Pulp and Paper

For valves

Bar 15 / 60 / 90

T°C – 100 + 250°c

Ph. 2 / 12

v.m/sec. 2

Prodotto Trecce e Baderne- 9 - Gasket Italy

Description

Multipack®.

For pumps

Bar 20 / 80 / 200

T°C 250°c

Ph. 1 / 13

v.m/sec. 7 / 1 / 1.5

Prodotto Trecce e Baderne 19 - Gasket Italy

Description

Orange PolymideLenzing Fiber

For pumps

Bar 40 / 100 / –

T°C – 100 + 280°c

Ph. 0 / 12

v.m/sec. 15 / 2 / –

Prodotto Trecce e Baderne 39 - Gasket Italy

Descrizione

Alipack White®.

Per pompe

Bar 50 / – / –

T°C – 200 + 250°c

Ph. 3 / 11

v.m/sec. 30 / – / –

Prodotto Trecce e Baderne 5 - Gasket Italy

Description

Alipack Black®.

For valves

Bar 50 / – / –

T°C – 200 + 300°c

Ph. 3 / 11

v.m/sec. 30 / – / –

Prodotto Trecce e Baderne 16 - Gasket Italy

Description

Miltex®.

For pumps

Bar 20 / 80 / 200

T°C + 250°c

Ph. 1 / 13

v.m/sec. 7 / 1 / 1.5

Prodotto Trecce e Baderne 26 - Gasket Italy

Description

Synthetic Pack White®

For pumps

Bar 50 / 80 / 100

T°C 100°c + 250°c

Ph. 2 / 12

v.m/sec. 15 / 2 / 1.5

Prodotto Trecce e Baderne- 10 - Gasket Italy

Description

Synthetic Pack Black®

For pumps

Bar 50 / 80 / 100

T°C 100°c + 250°c

Ph. 2 / 12

v.m/sec. 15 / 2 / 1.5

Prodotto Trecce e Baderne - Gasket Italy

Description

Synthetic Pack White® + Multipack® on corners

For pumps

Bar 30 / 80 / 100

T°C – 100°c + 250°c

Ph. 2 / 12

v.m/sec. 15 / 1.5 / 2

Prodotto Trecce e Baderne -12 - Gasket Italy

Description

Synthetic Pack White® + Multipack® Striped.

For valves

Bar 50 / 80 / 100

T°C – 100°c + 250°c

Ph. 2 / 12

v.m/sec. 15 / 1.5 / 2

Prodotto Trecce e Baderne 21 - Gasket Italy

Description

Glass+ Lubrificated P.T.F.E.

For pumps

Bar 20 / 40 / 60

T°C -50°c + 280°c

Ph. 2 / 12

v.m/sec. 15 / 2 / 1.5

Prodotto Trecce e Baderne 4 - Gasket Italy

Description

Lubrificated graphite glass

For valves

Bar – / 200 / –

T°C -50°c + 550°c

Ph. 2 / 12

v.m/sec. – / – / –

Prodotto Trecce e Baderne 35 - Gasket Italy

Description

Graphited Glass + Inconel®

For valves

Bar – / 100 / 200

T°C – 50°c + 550°c

Ph. 2 / 12

v.m/sec. – / 1 / 1.5

Trecce e Baderne 3 - Gasket Italy

Description

Greased Graphited Cotton

For valves

Bar 10 / 10 / 60

T°C + 100°c

Ph. 6 / 9

v.m/sec. 10 / 1 / 1.5

Prodotto Trecce e Baderne 41 - Gasket Italy

Description

Greased Graphited Cotton

For pumps

Bar 10 / 10 / 60

T°C + 100°c

Ph. 6 / 9

v.m/sec. 10 / 1 / 1.5

Prodotto Trece e Baderne 22 - Gasket Italy

Description

Ramié + P.T.F.E. lubrificated

For valves

Bar 25 / 60 / 100

T°C – 50°c +120°c

Ph. 4 / 11

v.m/sec. 10 / 2 / 1.5

Prodotto Trecce e Baderne 28 - Gasket Italy

Description

Cotton + P.T.F.E.

For valves

Bar 10 / 10 / 60

T°C +100°c

Ph. 6 / 9

v.m/sec. 10 / 1 / 1.5

Prodotto Trecce e Baderne 6 - Gasket Italy

Description

Fluorpack®

For pumps

Bar 50 / 200 / 300

T°C -200°c + 280°c

Ph. 0 / 14

v.m/sec. 25 / 2 / 1.5

Prodotto Trecce e Baderne 24 - Gasket Italy

Description

Fluorpack® + Kevlar® on corners

For pumps

Bar 70 / 250 / 350

T°C -200°c +280°c

Ph. 3 / 12

v.m/sec. 25 / 3 / 1.5

Prodotto Trecce e Baderne -13 - Gasket Italy

Description

Fluorpack® + Kevlar® zebrato

For pumps

Bar 20 / 50 / –

T°C – 50°c + 250°c

Ph. 2 / 12

v.m/sec. 20 / 1 / –

Prodotto Trecce e Baderne 20 - Gasket Italy

Description

Fluorpack® + P.T.F.E. on corners

For pumps

Bar 20 / 80 / 200

T°C – 100°c + 260°c

Ph. 0 / 14

v.m/sec. 15 / 1 / 1.5

Prodotto trecce e baderne 40 - Gasket Italy

Description

GFO® Gore

For pumps

Bar 50 / 200 / 300

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 25 / 2 / 1.5

Prodotto Trecce e Baderne-7 - Gasket Italy

Description

G4® Gore

For pumps

Bar 80 / 200 / 500

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 10 / 2 / 1

Prodotto Trecce e Baderne 3 - Gasket Italy

Description

GFO® + Kevlar® sugli angoli

For pumps

Bar 70 / 250 / 350

T°C -100°c +280°c

Ph. 3 / 12

v.m/sec. 25 / 3 / 1.5

Prodotto Trecce e Baderne 30 - Gasket Italy

Description

GFO® + Kevlar® zebrato

For valves

Bar 20 / 50 / –

T°C -50°c +250°c

Ph. 2 / 12

v.m/sec. 20 / 1 / –

Prodotto Trecce e Baderne 38 - Gasket italy

Description

Fluorwhite®

For valves

Bar 20 / 200 / 250

T°C -100°c +280°c

Ph. 1 / 14

v.m/sec. 20 / 2 / –

Prodotto Trecce e Baderne 32 - Gasket Italy

Description

P.T.F.E.

For pumps

Bar – / 150 / 500

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. – / 2 / 1

Prodotto Trecce e Baderne 32 - Gasket Italy

Description

P.T.F.E. lubrificated

For valves

Bar 50 / 100/ 20

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 8 / 2 / 1

Prodotto Trecce e Baderne 32 - Gasket Italy

Description

P.T.F.E. lubrificated for food

For pumps

Bar 50 / 100/ 20

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 8 / 2 / 1

Prodotto Trecce e Baderne 32 - Gasket Italy

Description

P.T.F.E. grafited

For valves

Bar 50 / 200/ 300

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 25 / 2 / 1.5

Trecce e baderne 4 - Gasket Italy

Description

P.T.F.E. grafited and librificated

For pumps

Bar 15 / 100/ –

T°C -100°c +280°c

Ph. 0 / 14

v.m/sec. 20 / 1 / –

Trecce e baderne 4 - Gasket Italy

Description

Aramidic Technora® + Grafited P.T.F.E.

For pumps

Bar 30 / 250 / 300

T°C -200°c +280°c

Ph. 2 / 12

v.m/sec. 25 / 2 / –

Trecce e baderne 4 - Gasket Italy

Description

Extrude grafited P.T.F.E.

For pumps

Bar 15 / 100 / –

T°C -100°c +280°c

Ph. 0 / 14

v.m/sec. 20 / 1 / –

Prodotto Trecce e Baderne 23 - Gasket Italy

Description

Estrude grafited P.T.F.E.

For pumps

Bar 10 / – / –

T°C -50°c +260°c

Ph. 0 / 14

v.m/sec. 10 / – / –

Prodotto Trecce e Baderne 29 - Gasket Italy

Description

Unsintered P.T.F.E.

For pumps

Bar – / – / 80

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. – / – / 1.5

Prodotto Trecce e Baderne 23 - Gasket Italy

Description

P.T.F.E. Tank

For valves

Bar – / – / 220

T°C -50°c +280°c

Ph. 0 / 14

v.m/sec. – / – / 2

Prodotto Trecce e Baderne 34 - Gasket Italy

Description

P.T.F.E. + Kevlar® on corners

For valves

Bar – / 30 / 500

T°C -200°c +280°c

Ph. 3 / 12

v.m/sec. – / 2 / 1.5

Prodotto Trecce e Baderne 36 - Gasket Italy

Description

P.T.F.E. + Prange Polymid on corners

For valves

Bar 70 / 200 / 500

T°C -200°c +280°c

Ph. 0 / 14

v.m/sec. 8 / 2 / 1.5

Prodotto Trecce e Baderne 33 - Gasket Italy

Description

P.T.F.E. + Green Polymid on corners

For valves

Bar 70 / 200 / 500

T°C -200°c +280°c

Ph. 0 / 12

v.m/sec. 8 / 2 / 1.5

Prodotto Trecce e Baderne 31 - Gasket Italy

Description

Pure graphite

For pumps

Bar 40 / 20 / 200

T°C -100°c +700°c

Ph. 0 / 14

v.m/sec. 25 / 2 / 1.5

Prodotto Trecce e Baderne 15 - Gasket Italy

Description

Pure graphited 99%

For pumps

Bar 40 / 20 / 200

T°C -100°c +700°c

Ph. 0 / 14

v.m/sec. 30 / 3 / 1

Trecce e baderne 2 - Gasket Italy

Description

Incotex®

For pumps

Bar – / 80 / 300

T°C -100°c +700°c

Ph. 0 / 14

v.m/sec. – / 1.5 / 1

Trecce e baderne 2 - Gasket Italy

Description

Pure expanded graphite

For valves

Bar – / – / 300

T°C -100°c +650°c

Ph. 0 / 14

v.m/sec. – / – / 1

prodotto Trecce e Baderne 25 - Gasket Italy

Description

Pure expanded graphite + Carbon on cornersl®

For valves

Bar – / – / 300

T°C -100°c +650°c

Ph. 0 / 14

v.m/sec. – / – / 1

prodotto Trecce e Baderne 25 - Gasket Italy

Description

Pure expanded graphite + Carbon on corners

For pumps

Bar 30 / 50 / 200

T°C -200°c +650°c

Ph. 0 / 14

v.m/sec. 22 / 2 / –

Prodotto Trecce e Baderne 17 - Gasket Italy

Description

Carbon

For valves

Bar 45 / 100 / 200

T°C -50°c +500°c

Ph. 2 / 12

v.m/sec. 20 / 2 / 1

prodotto Trecce e Baderne 25 - Gasket Italy

Description

Pre oxided graphite carbon + Inconel®

For valves

Bar – / – / 200

T°C -50°c +500°c

Ph. 2 / 12

v.m/sec. – / – / 1

Prodotto Trecce e Baderne 11 - Gasket Italy

Description

Pure graphite + Inconel®

For valves

Bar – / – / 300

T°C -100°c +700°c

Ph. 0 / 14

v.m/sec. – / – / 1

prodotto Trecce e Baderne 25 - Gasket Italy

Description

Carbon + P.T.F.E.

For valves

Bar 35 / 50 / 150

T°C -130°c +250°c

Ph. 1 / 13

v.m/sec. 10 / 2 / –

Trecce e baderne - Gasket Italy
