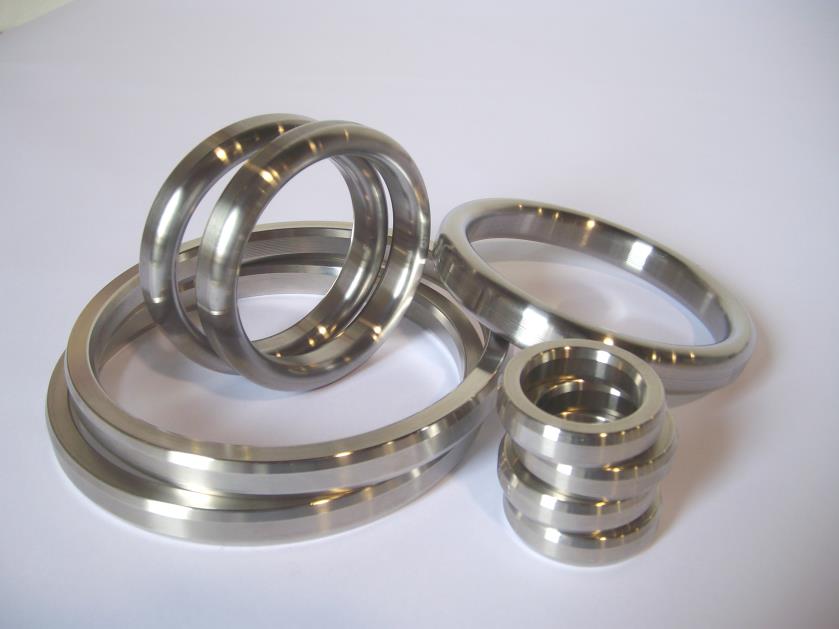

Ring Joint Gaskets

Applications

The ring joint gaskets or heavy metal have found their increased use in the oil industry (both production and refining of etrolio), all of the steam-processing plants and in applications for resistance to high temperatures and pressures are taken which are necessary for high mechanical strength, good thermal conductivity and an unassailable in the presence of corrosive agents.

Characteristics and properties

This type of metallic gaskets are obtained using a machining from solid metal at CNC working centres: cutting machines for billets, forgings or semi-automatic lathes for the rough surface of raw material and special CNC lathes for machining of the section. Standard materials to get these seals, include any type of metal forged or sheet and are not taken into consideration melting metals or metals that require heat treatment after the mechanicalfinishing and is excluded absolutely any recourse to welding (only full processing). Are made of different types: oval, octagonal, square, TRAPEZOID, etc.(or delo customer specification) and with special surface treatments when required. They are held by means of simple brute force compression load on the surface of the seal. Inizialmentela estate is given by the action of wedge contact seal that facilitates adjustment and Assembly of same in the appropriate venue.

Construction Characteristics

Ring jont with oval section

Pressure Kg/Cm2 Max.

700

r1

Construction Characteristics

Ring joint with octagonal section

Pressure Kg/Cm2 Max.

700

r2

Construction Characteristics

Ring joint with octagonal and plane in the internal diameter section

Pressure Kg/Cm2 Max.

700

rx2

Construction Characteristics

Ring join with ortogonal section

Pressure Kg/Cm2 Max.

1200

bx2

Construction Characteristics

Ring joint with lens section

Pressure Kg/Cm2 Max.

250

rl30

Construction Characteristics

Ring joint with trapezoidal section

Pressure Kg/Cm2 Max.

400

rl31

Construction Characteristics

Ring joint with triangular section

Pressure Kg/Cm2 Max.

400

rl32

Construction Characteristics

Ring joint with triangular and plane in the internal diameter section

Pressure Kg/Cm2 Max.

300

rl33
